Fail2Ban UI

🚀 Fail2Ban-UI is a Swiss-made web-based management interface for Fail2Ban. It provides an intuitive dashboard to monitor, configure, and manage Fail2Ban instances in real time, supporting both local and remote Fail2ban servers.

Developed by Swissmakers GmbH.

✨ Features

✅ Multi-Server Management

• Manage multiple Fail2ban servers from a single interface
• Support for local, SSH, and API agent connections
• Add, edit, delete, and configure remote Fail2ban instances
• Switch between servers seamlessly via server selector
• Test connections before saving server configurations

✅ Real-time Dashboard

• View all active Fail2Ban jails and banned IPs in a clean UI
• Displays live ban events from all configured servers
• Internal log overview with ban events stored in SQLite database
• Statistics per server and global overview
• Track ban events with country information and log lines

✅ Ban & Unban Management

• Unban IPs directly via the UI (works for local and remote servers)
• Search for banned IPs across all active jails
• View ban history with detailed information (IP, jail, hostname, country, logs)

✅ Fail2Ban Configuration Management

• Edit & Save active Fail2Ban jail/filter configs (local and remote)
• Manage Jails: Enable/disable jails on local and remote servers
• Filter Debug: Test filters against log lines using fail2ban-regex
• Get automatic email alerts for specific country-based bans
• Configure own SMTP settings for email alerts (STARTTLS only)
• Adjust default ban time, find time, and set ignore IPs
• Auto-detects changes and prompts for reload to apply
• Enable debug-mode for detailed module logs

✅ SSH Remote Management

• Connect to remote Fail2ban servers via SSH
• Automatic deployment of custom action for ban notifications
• Passwordless sudo support for seamless operation
• Configurable SSH key selection per server
• Test SSH connections before saving

✅ API Agent Support (Future)

• Connect to remote Fail2ban instances via lightweight API agents
• Secure communication using shared secrets
• Push ban notifications from remote servers to the UI

✅ Persistent Storage

• SQLite database for storing server configurations and ban events
• All settings and server configurations persist across restarts
• Automatic migration from legacy JSON-based settings

✅ Mobile-Friendly & Responsive UI / Fast

• Optimized for mobile & desktop
• Powered by Tailwind CSS (works offline when built locally)
• Go-based backend ensures minimal resource usage
• Parallel execution for improved performance on remote connections

✅ Systemd & SELinux Support

• Run as a systemd service (Standalone or Container)
• Supports SELinux for secure execution (also container version)

✅ Internationalization

• Multi-language support (English, German, French, Italian, Spanish)
• Easy to add new languages via JSON translation files

📸 Screenshots

Some images from the UI in action:

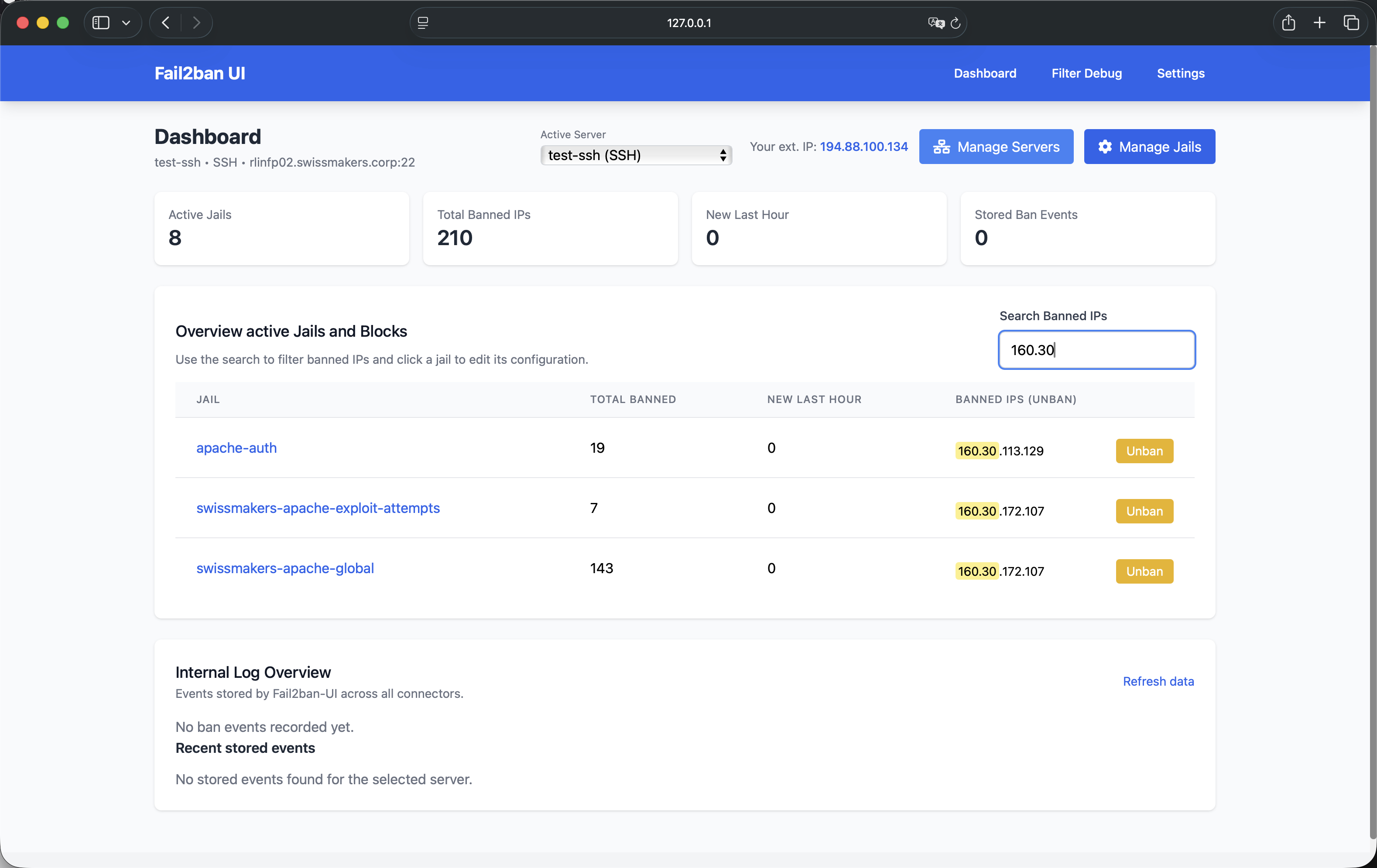

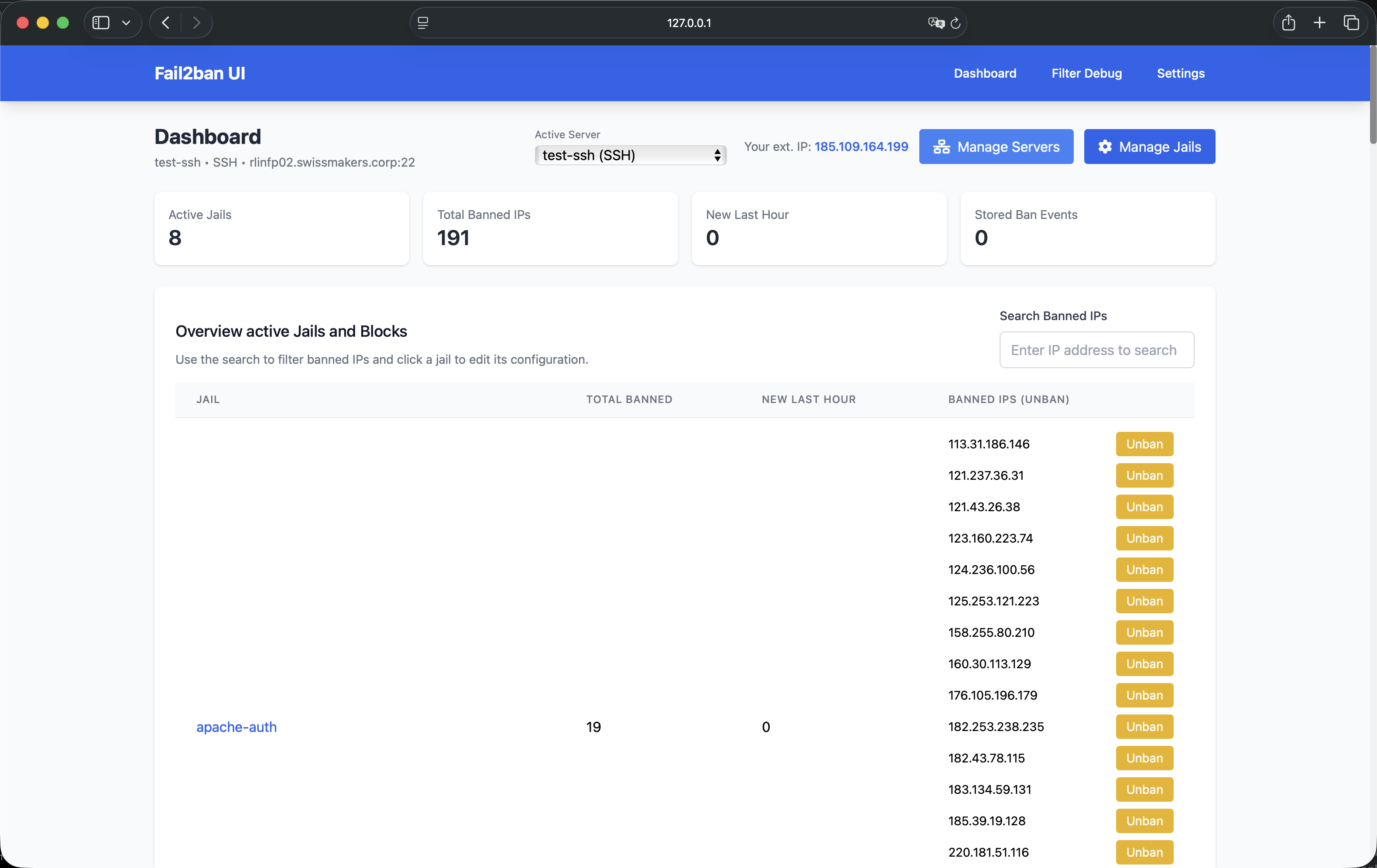

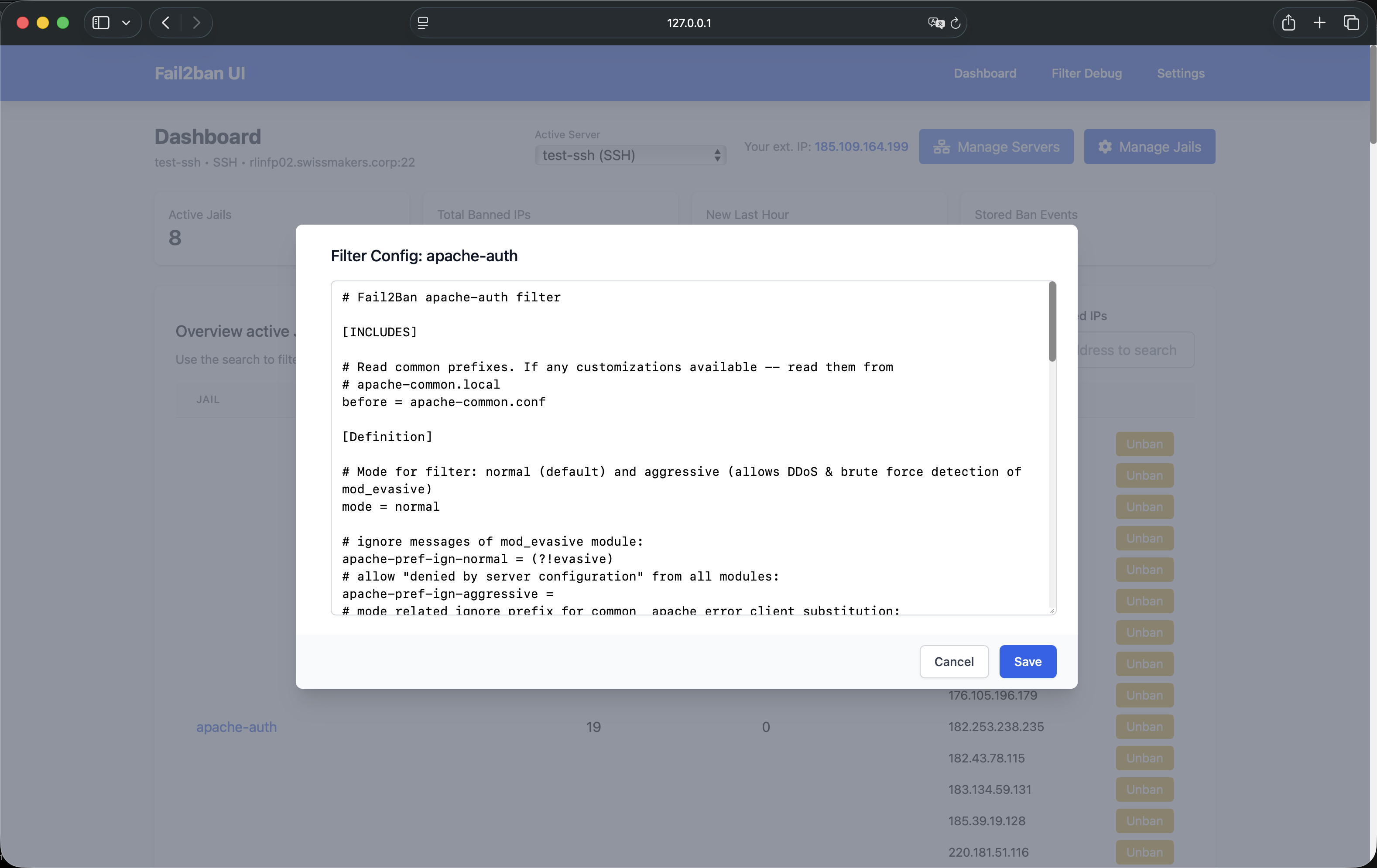

Dashboard	Server Management	Filter Debug

📌 More screenshots are found here

---

📥 Installation & Deployment

Fail2Ban-UI can be currently deployed in two main ways:
1️⃣ Running from local source
2️⃣ Running as a container

🔹 Method 1: Running from Local Source

To install and run directly on the system:
📌 Follow the basic systemd setup guide

git clone https://github.com/swissmakers/fail2ban-ui.git /opt/fail2ban-ui
cd /opt/fail2ban-ui

# Build Tailwind CSS for production (optional but recommended)
# This requires Node.js and npm to be installed
./build-tailwind.sh

# Build Go application
go build -o fail2ban-ui ./cmd/server/main.go
...

📌 Note on Tailwind CSS:

• For production/offline use, build Tailwind CSS using ./build-tailwind.sh before building the application
• This creates a local CSS file at pkg/web/static/tailwind.css that works offline
• The build script uses Tailwind CSS v3 (latest v3.x, matches CDN version)
• If the local file is not found, the application will automatically fall back to the CDN (requires internet connection)
• The build script requires Node.js and npm to be installed
• The script works for both fresh installations and existing development environments

---

🔹 Method 2: Running as a Container

For an easy containerized deployment:
📌 Follow the basic container deployment guide

You can either build the image locally or pull the official, automatically built image from the Swissmakers registry.
Every merge into the main branch triggers a new build that is published at:

registry.swissmakers.ch/infra/fail2ban-ui:latest

# Pull the latest pre-built image
podman pull registry.swissmakers.ch/infra/fail2ban-ui:latest

# Run the container
podman run -d \
  --name fail2ban-ui \
  --network=host \
  -v /opt/podman-fail2ban-ui:/config:Z \
  -v /etc/fail2ban:/etc/fail2ban:Z \
  -v /var/log:/var/log:ro \
  -v /var/run/fail2ban:/var/run/fail2ban \
  -v /usr/share/GeoIP:/usr/share/GeoIP:ro \
  registry.swissmakers.ch/infra/fail2ban-ui:latest

📌 Note: The container can also be managed as a systemd service.

---

🚀 Getting Started

First Launch

1. After starting Fail2Ban-UI, access the web interface at http://localhost:8080 (or your configured port)
2. You'll be prompted to add your first Fail2ban server or enable the local connector
3. For local connections: Enable the local connector if Fail2ban is running on the same host
4. For remote connections: Add a new server via SSH or API agent

Adding a Server

Local Server

• The local connector is available by default but disabled initially
• Enable it in the server management settings if Fail2ban runs on the same host
• Requires root access or passwordless sudo to the Fail2ban socket

SSH Server

1. Go to Settings → Manage Servers
2. Click Add Server
3. Select SSH as connection type
4. Fill in:
   • Name: A descriptive name for this server
   • Host: IP address or hostname
   • Port: SSH port (default: 22)
   • SSH User: Username for SSH connection
   • SSH Key: Select an SSH key from your ~/.ssh/ directory (or /config/.ssh/ when running in a container)
5. Click Test Connection to verify before saving
6. The UI will automatically deploy the custom action for ban notifications

Requirements for SSH connections:

• SSH key-based authentication (passwordless login)
• Network connectivity from UI host to remote server
• The SSH user must have:
  • Sudo access to run systemctl restart fail2ban and /usr/bin/fail2ban-client (configured via sudoers)
  • File system ACLs on /etc/fail2ban for read/write access to configuration files (no sudo needed for file operations)

Recommended SSH setup (using service account with ACLs):

# Create service account
sudo useradd -r -s /bin/bash sa_fail2ban

# Configure sudoers for fail2ban-client and systemctl restart
sudo visudo -f /etc/sudoers.d/fail2ban-ui
# Add:
sa_fail2ban ALL=(ALL) NOPASSWD: /usr/bin/fail2ban-client *
sa_fail2ban ALL=(ALL) NOPASSWD: /usr/bin/systemctl restart fail2ban

# Set ACLs for /etc/fail2ban directory
sudo setfacl -Rm u:sa_fail2ban:rwX /etc/fail2ban
sudo setfacl -dRm u:sa_fail2ban:rwX /etc/fail2ban

This setup provides fine-grained permissions without requiring full passwordless sudo access.

API Agent Server (Future)

• API agent support is planned for future releases
• Will allow connecting to remote Fail2ban instances via a lightweight API service

---

🔒 Security Considerations

• Fail2Ban-UI requires root privileges or passwordless sudo to interact with Fail2Ban sockets (for local connections).
• For SSH connections, use a dedicated service account with:
  • Limited sudo access (only for fail2ban-client and systemctl restart fail2ban)
  • File system ACLs on /etc/fail2ban for configuration file access (more secure than full sudo)
• Restrict access using firewall rules or a reverse proxy with authentication.
• Ensure that Fail2Ban logs/configs aren't exposed publicly.
• For SSH connections, use SSH key-based authentication and restrict SSH access.
• Store SSH keys securely and use strong passphrases.
• The SQLite database contains sensitive information - ensure proper file permissions.

For SELinux users, apply the Fail2Ban-UI security policies:

# Basic rule to allow fail2ban access the fail2ban-ui API
semodule -i fail2ban-curl-allow.pp
# Also needed for a secure container deployment
semodule -i fail2ban-container-ui.pp
semodule -i fail2ban-container-client.pp

---

🛠️ Troubleshooting

UI not accessible?

• Ensure port 8080 (or your configured port) is open:

  sudo firewall-cmd --add-port=8080/tcp --permanent
  sudo firewall-cmd --reload


• Check logs:

  journalctl -u fail2ban-ui.service -f


No servers configured?

• On first launch, you need to either:
  • Enable the local connector (if Fail2ban runs locally)
  • Add a remote server via SSH or API agent
• Go to Settings → Manage Servers to configure your first server

SSH connection issues?

• Verify SSH key authentication works manually:

  ssh -i ~/.ssh/your_key user@remote-host


• Ensure the SSH user has proper permissions:
  • Check sudo access for fail2ban-client and systemctl restart fail2ban:

    sudo -l -U sa_fail2ban


  • Verify ACLs on /etc/fail2ban:

    getfacl /etc/fail2ban


• Check debug mode in settings for detailed error messages
• Verify the SSH user has access to /var/run/fail2ban/fail2ban.sock

Local connector not working?

• Ensure Fail2ban is running: sudo systemctl status fail2ban
• Check socket permissions: ls -la /var/run/fail2ban/fail2ban.sock
• Verify the UI has access (runs as root or has sudo permissions)

Database issues?

• The SQLite database is stored in the application directory
• Check file permissions if you see database errors
• Backup the database before major updates

---

📊 Database

Fail2Ban-UI uses an embedded SQLite database (fail2ban-ui.db) to store:

• Server configurations: All configured Fail2ban servers (local, SSH, API agent)
• Application settings: UI preferences, SMTP settings, etc.
• Ban events: Historical ban records with IP, jail, hostname, country, and log lines

The database is automatically created on first launch and migrated from legacy JSON settings if present.

---

🌐 Internationalization

Fail2Ban-UI supports multiple languages:

• English (en)
• German (de, de_ch)
• French (fr)
• Italian (it)
• Spanish (es)

Change the language in Settings → Language. New languages can be added by creating translation files in internal/locales/.

---

🤝 Contributing

We welcome pull requests and feature suggestions!

1. Fork this repository
2. Create a new branch:

   git checkout -b feature/my-feature


3. Commit your changes:

   git commit -m "Add new feature"


4. Push to the branch:

   git push origin feature/my-feature


5. Open a Pull Request

📜 License

Fail2Ban-UI is licensed under GNU GENERAL PUBLIC LICENSE, Version 3.
See LICENSE for details.
